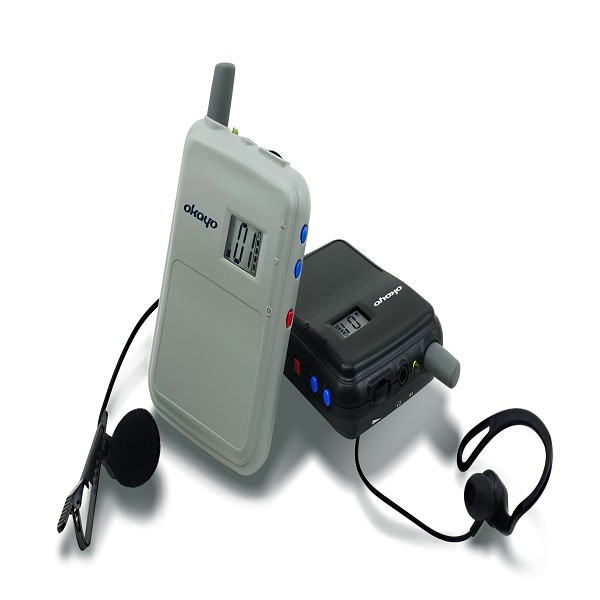

WT-300
Economical Group Tour
WT-300 series leaves you various channel options while guiding a tour. The external antenna makes 100-meter transmission range possible. The auto-locking function helps to reduce the accidental rate on channel switching without notice. The body of the device also provides you space for customize photos or messages and help the tourist to improve their touring experience.
Features
- Available frequency bands on 863-865 MHz (country dependent)
- 40 channels (depends on frequency)
- Backlit LCD display for battery, channel number reading
- Channel lock and power saving functions
- Fin antenna secures 100+ meter wireless coverage
- Powered by two AA battery (Alkaline or NiMH), 50+ hours battery life
- Rechargeable design
- Label space on front case for tour branding
- Braille indicators help visually impaired people
- Simple to use
Specifications
OVERALL SYSTEM
|
|
Oscillation type |
PLL Synthesized Control OSC |
Carrier frequency range |
863-865 MHz |
Channels |
40 (region dependent) |
Operating temperature |
-10℃ ~ 50℃ |
Power requirements |
2 x AA (1.2 V, NiMH) or 2 x AA (1.5 V, Alkaline) |
Channels |
40 (country dependent) |
Frequency response |
400 Hz ~ 5 kHz |
Operating range |
100 m (line of sight) |
Dimensions (D x W x H) |
31.7 x 67.7 x 92 mm |
Weight |
110 g (with batteries) |
TRANSMITTER |
WT-300T G2 |
RF output power |
10 mW, subject to local rules |
Microphone connector |
3.5 mm |
Battery run time (NiMH/Alkaline) |
25 / 30 hours, battery capacity dependent |
Serial numbers |
TK008187- TK008188 for Egypt only |
RECEIVER |
WT-300R G2 |
Receiving mode |
PLL single-channel |
Audio level |
550 mV |
Earphone connector |
3.5 mm |
Battery run time (NiMH/Alkaline) |
50 / 60 hours, battery capacity dependent |
Transmitters
 EJ-770T-300 Stationary Transmitter |
 EJ-774T-300 4-channel Stationary Transmitter |
 EJ-501TG Handheld Microphone |
Chargers
 HDC-300 24-slot Charger |
 HDC-312 12-slot Charger |
Accessories
 EM-100 Single-sided Earphone |
 EM-101 Single-sided Earphone (soft shell) |
 EM-305 Single-sided Earphone (hard shell) |
 EM-201 Over-the-Head Headphone |
 EM-205 Over-the-Head Headphone |
 PM-20A Gooseneck Plug-In Microphone |
 LM-72A Lapel Microphone |
 LM-72AM Lapel Microphone with Mute Button |
 LM-90A Lapel Microphone |
 HM-35A Behind-the-head microphone |
 HM-55A Behind-the-head microphone |
 HM-65A Behind-the-head microphone |
 N-32 Lanyard |
 NL-90 90cm Induction Loop |
 EC-205 Ear Cushion for EM-205 |
 DEC-205 Disposable Ear Cover for EM-201 and EM-205 |
 RUB-100 Replaceable rubber earbud for EM-100 |
 AC-300 26 unit Carry Case |
 CCW-28 28 unit Heavy-Duty and Waterproof Carry Case |
 AC-358-300 Combo Carry Case (w/ removable foam) |
 PD-1600 1600mA Ni-MH Rechargeable Battery |
 PD-2900 2900mA Alkaline Battery |
