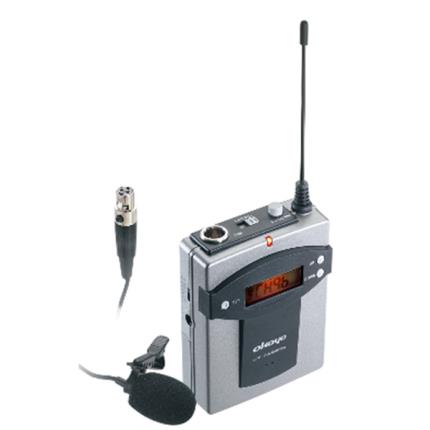

EJ-7XT+
Bodypack Transmitter (Mini XLR jack)
Features
- Mini XLR input jack
- Frequency: 640- 865 MHz.
- Up to 80/100-meter reception range
- 16/96 available selected channels
- 3 adjustable sensitivity levels
- Robust and aluminous housing
- Informative LCD screen for easy operation
Specifications
EJ-7XT+ |
|
Oscillation type |
PLL Synthesized Control (OSC) |
| Carrier frequency range |
514~865MHz |
Switching bandwidth |
Max. 24MHz |
Squelch |
Tone key and noise-lock dual squelch |
RF output |
10mW (according to regulation) |
| Channel |
Pre-programmed 16/96 switchable channels |
Max. deviation |
80 kHz, with level limiting |
| Dynamic range |
110 dB |
T.H.D. |
< 0.5 % |
| Microphne |
Built-in condenser microphone |
Antenna |
External flexible antenna |
Battery type |
1.5V x 2 AA-type Alkaline battery |
Dimension (DxWxH) |
26 x 64 x 98 mm |
Weight |
170g (with batteries) |
Accessories
 HM-35C Behind-the-head microphone |
 HM-55C Behind-the-head microphone |
 HM-65C Behind-the-head microphone |
 HM-7C Behind-the-head microphone |
 LM-90C Lapel Microphone |
 N-32 Lanyard |
 GP-1600 1600mA Ni-MH Rechargeable Battery |
