AT-100+
Simple Guide
Simple guide AT-100+ is OKAYO’s first model for self-guided tour market. Apart from participating in a group tour, visitors can enjoy themselves by carrying an AT-100+. Clear keypad and dual-jack design are highly suitable for families. If you are an exhibitor, we also enclose a software pack for commentary uploading. All information is easy to access. Incorporated with 8GB SD card, more than 30,000 soundtracks are available. Compatible with various chargers, including 10-slot and 50-slot version.
Features
- Ergonomic design for comfortable use
- Robust ABS housing
- Easy-to-read keypad
- Integrated speaker with high audio quality
- Max. 32 languages, each with 950 tracks
- Powered with two(2) AA batteries
- User-friendly software for audio management
Specifications
Audio Parameters
|
|
Audio format |
High quality audio compression |
Bandwidth |
50 Hz ~ 18 kHz |
Dynamic range |
95 dB |
Distortion |
< 0.1 % |
Speaker |
Built-in 1 W @ 8 Ω |
Earphone output |
3.5mm Jack x 2 (stereo) |
General Parameters
|
|
Number of language |
Max. 32 |
Number of message |
Max. 950 per language |
Memory capacity |
8 GB, supports up to 16 GB |
Operating temperature |
-10℃ ~ 50℃ |
Battery |
2 x 1.2 V 1600mA Ni-MH rechargeable battery |
Battery life |
11 hours |
Dimensions (D x W x H) |
28 x 59 x 235 mm |
Weight |
180 g (with battery) |
Uploading
|
|
Software |
OKAYO Audio Master 3 |
OS Support |
Windows 7 / 8 / 10 / 11 |
Upload interface |
USB 1.1 / 2.0 |
Upload speed |
2.5 Mbytes / sec @ ATC-110U Uploader |
Transmitters or Chargers

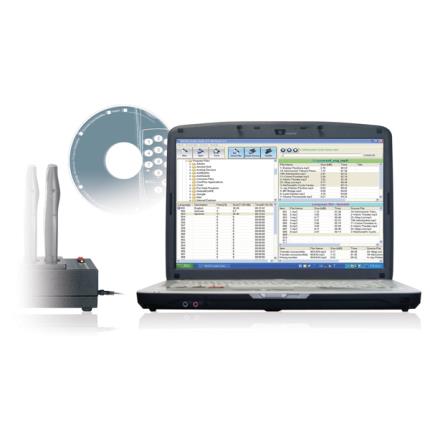

 Audio Master 3 AT-100 Proprietary Software for Audio Compilement |
||
 ATC-110U 10-slot Charger and Uploader |
||
|
ATC-110 10-slot Charger |
 ATC-150 50-slot Charger |
Accessories
 EM-100 Single-sided Earphone |
 EM-101 Single-sided Earphone (soft shell) |
 EM-305 Single-sided Earphone (hard shell) |
 EM-201 Over-the-Head Headphone |
 EM-205 Over-the-Head Headphone |
 N-32 Lanyard |
 NL-90 90cm Induction Loop |
 PD-1600 1600mA Ni-MH Rechargeable Battery |
 EC-205 Ear Cushion for EM-205 |
 DEC-205 Disposable Ear Cover for EM-201 and EM-205 |
 RUB-100 Replaceable rubber earbud for EM-100 |
 PD-2900 2900mA Alkaline Battery |
