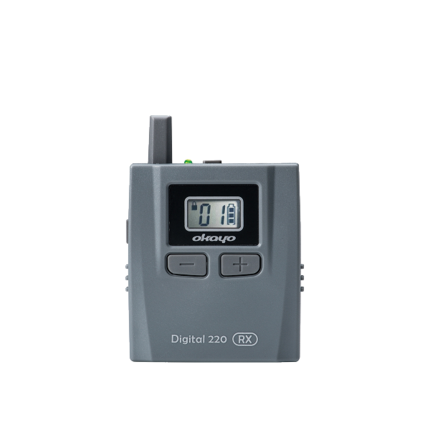

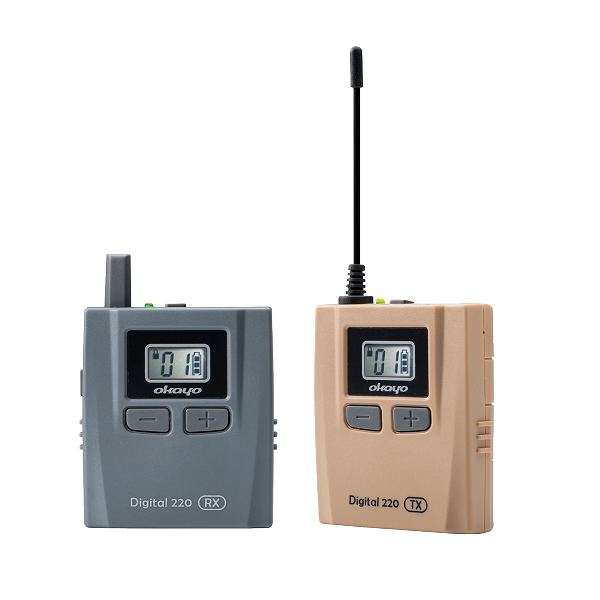

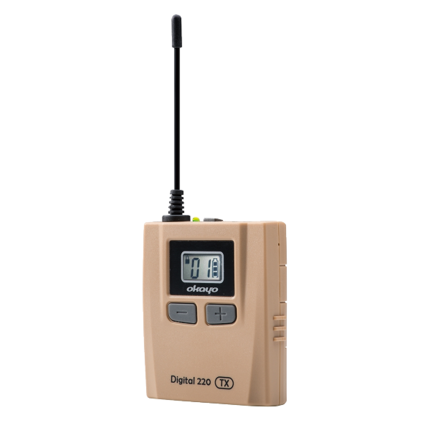

Digital 220
Best for Q&A Tour
Interactive Guiding System
Being different from traditional one-way guiding system, we'd like to introduce our new two-way guiding system Digital 220.
Equipped with lightweight Digital 220, group guides and members can hear and be heard clearly regardless of noisy environments, such as public streets, large-scale factories, or crowded exhibitions.
Incorporated with inbuilt microphone, any group member can raise his or her question with a press of talk button. No more hesitation exists during your tour. Every group guide fully controls the talk right in the group and is free from “group chaos” for sure. Selectable HAC setting is useful for HAC users. Remote group-channel swift is beneficial to group guides who need to quickly find another channel if unexpected interference happens onsite.
There is no doubt that 120+ meter operating range (line-of-sight) and 25+ hour working time make Digital 220 be a great tool for any type of groups, like sightseeing tours, factory tours, enterprise training programs and so on. Even more, group members will never be missing as out-of-range reminder will be activated automatically whenever they stay further and are not in the transmission area of their guide.
Digital 220 is perfect for any application whenever two-way interaction is needed.
Equipped with lightweight Digital 220, group guides and members can hear and be heard clearly regardless of noisy environments, such as public streets, large-scale factories, or crowded exhibitions.
Incorporated with inbuilt microphone, any group member can raise his or her question with a press of talk button. No more hesitation exists during your tour. Every group guide fully controls the talk right in the group and is free from “group chaos” for sure. Selectable HAC setting is useful for HAC users. Remote group-channel swift is beneficial to group guides who need to quickly find another channel if unexpected interference happens onsite.
There is no doubt that 120+ meter operating range (line-of-sight) and 25+ hour working time make Digital 220 be a great tool for any type of groups, like sightseeing tours, factory tours, enterprise training programs and so on. Even more, group members will never be missing as out-of-range reminder will be activated automatically whenever they stay further and are not in the transmission area of their guide.
Digital 220 is perfect for any application whenever two-way interaction is needed.
Configuration
 |
 |
Features
-
WIRELESS
Two-way radio transmission
120+ meters range
Smooth message conveying
Noise free when interfered -
INTERFACE
Clear display and LED indication
Integrated microphone for hassle free
Talk-back switch for group guides
PTT button for members
Earphone volume adjustable -
MANIPULATE
Remote grouping/channel shift eases tour setup
Easy access of enabling/disabling talk-back
Beep reminder when out of guide's range
HAC hearing setting applicable -
POWER
Only 1 AA battery needed
25+ hours of run time
Low battery warning
Compatible charging stations
Specifications
Digital 220
|
|
Emission modulation |
4 GFSK |
Radio frequency |
500 ~ 900 MHz, upon regions |
Channels |
44 ~ 48, upon regions |
Frequency response |
300 ~ 3,400 Hz |
Wireless range [1] (line-of-sight) |
120+ meters, upon RF conditions and regions |
Battery life[2](Ni-MH 2,100 mAh) |
D220T: 18+ hoursD220R: 25+ hours |
Battery life |
1 x AA battery, Ni-MH or Alkaline |
Charging time (Ni-MH 2,100 mAh) |
5 ~ 6 hours |
Dimensions (WHD) |
61 x 70 x 20 mm |
Weight, incl. battery |
65±3 g |
[1] Wireless range varies upon onsite environments and countries.
[2] Battery life varies upon battery types, users' operating habits. |
|

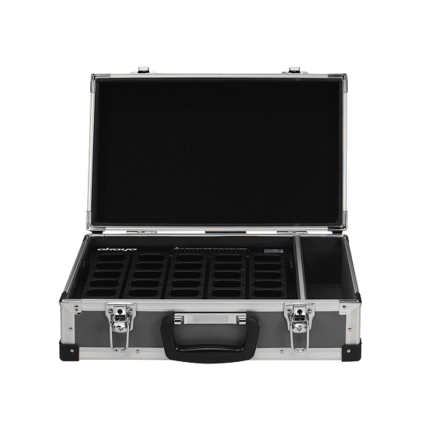

Transmitters or Chargers
Accessories
 EMC-100 Single-sided Ear Mic |
 EMC-300 Single-sided Ear Mic |
 HEM-20 Headphone Mic |
 HEM-30 Headphone Mic |
 EMC-206 Headphone Mic (cable detachable) |
 N-32 Lanyard |
 EC-205 Ear Cushion for EMC-206 |
 DEC-205 Disposable Ear Cover for EMC-206 |
 RUB-100 Replaceable rubber earbud for EMC-100 |
