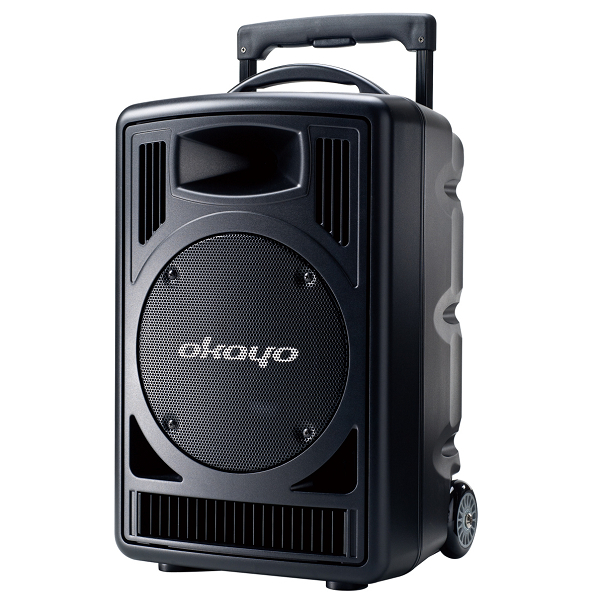

GPA-820+ │ GPA-828+
Wireless 150W Sound System
Upto 150W of powerful output and support for an event crowd of 800 or more.
Max. two Duo-channel receiver and scan mode will add more conveniences to prompt a quick installations for indoor or outdoor activities and simple to use!
*GPA-820+ / GPA-828+ (for Asian region)
Max. two Duo-channel receiver and scan mode will add more conveniences to prompt a quick installations for indoor or outdoor activities and simple to use!
*GPA-820+ / GPA-828+ (for Asian region)
Features
- Features
- Specifications
- Transmitters & Receivers
- Chargers
- Accessories
- Download
- 150W power output (max)
- Two-way speaker – 8” woofer and 1” tweeter – deliver great sound projection
- Supports max two Duo receiver modules (DR-500) allows 4 wireless microphones to operate concurrently.
- Duo-receiver provides SCAN function for a clear channel to use, and SYNC to target microphones at same channel as receive
- Integrated Bluetooth function for audio streaming from smartphone and tablet
- Various audio player modules for option – MP3, CD with pitch control or recording – at users’ choice
- Voice priority allows a reduced music volume when a microphone is used
- 4-segment battery meter for charging and power status reading
- Two power models – AC or Battery powered
- Runs 4-6 hours on a charge (built-in battery charger)
- Retractable handle and wheels allows users to move without difficulty
Overall Specifications |
|
Oscillation type |
PLL synthesized control OSC |
Carrier frequency range |
514-865 MHz (16 / 96 ch., country dependent) |
Adjustable frequency |
pre-programmed max. 96 switchable channels |
Display status |
LCD indicator displays channel or frequency |
Switching bandwidth |
max. 12 MHz |
Ambient temperature |
-10 °C ~ 50 °C |
Maximum deviation |
80 kHz, with level limiting |
Squelch |
tone key and noise lock dual-squelch |
Frequency response |
70 Hz - 17 kHz |
Operating range |
50 - 70 M (opening field) |
Wireless System |
|
Output power |
150 W (max.) |
Speaker |
8” woofer and 1” tweeter |
Receiver module |
DR-500 x 2 |
Audio input |
Combo / 6.3 φ -Mic1/2 in, 3.5 φ - Aux in,RCA-Line in, MIC/LINE switch |
Audio output |
3.5 φ - Aux out, RCA - Line out |
Power requirements |
100 ~ 240 VAC switching power supply |
Battery |
12V, 4.5Ah x 2 (Lead-Acid) rechargeable batteries |
Battery indicator |
4 LEDs to indicate battery autonomy status |
Operating life |
4 ~ 6 hours |
Charging time |
6 ~ 8 hours |
Dimensions (D x W x H) |
264 x 301 x 511 mm |
Weight |
16 kg (with batteries) |
 EJ-7T+A |
 EJ-7XT+A |
 EJ-701TM+A |
 EJ-701TS+A |
 DR-501A |
 DR-500 |
 TX-701-820 |
 CD-750S (CD/USB/SD, Pitch Control) |
 UM-502P (USB/SD) |
 CD-800S+ (CD/USB/SD, Pitch Control) |
 BT-4500 |
 CB-820 |
 ST-750 |
