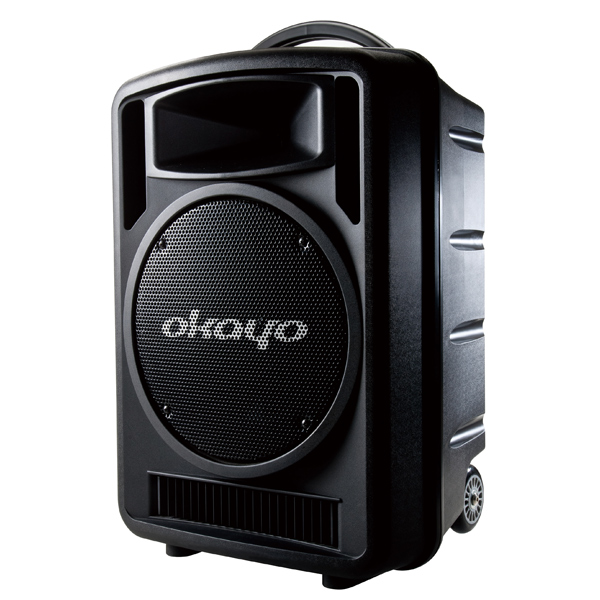

GPA-850+
Wireless 250W Sound System
GPA-850+ High Power Portable Sound System. (For Asia region).
The sound system gives mobility, flexibility, smart functionality and great sound features with various combinations. It will powerfully project your voice and music over than 1,000 people. It is ideal for large conferences and any house of worship.
The sound system gives mobility, flexibility, smart functionality and great sound features with various combinations. It will powerfully project your voice and music over than 1,000 people. It is ideal for large conferences and any house of worship.
Specifications
- Features
- Specifications
- Transmitters & Receivers
- Chargers
- Accessories
- Download
- 250W power output (max)
- Two-way speaker – 10” woofer and 1” tweeter – deliver great sound projection
- Supports two Duo-receiver modules, allows 4 wireless microphones to operate concurrently
- Duo-receiver provides SCAN function for a clear channel to use, and SYNC to target microphones at same channel as receive
- Integrated Bluetooth function for audio streaming from smartphone and tablet
- Various audio player modules for option – MP3, CD, DVD, pitch control or recording – at users’ choice
- Voice priority allows a reduced music volume when a microphone is used
- 4-segment battery meter for charging and power status reading
- Two power models – AC or Battery powered
- Runs 4-6 hours on a charge (built-in battery charger)
- Optional Audiolink transmitter module helps build large wireless coverage

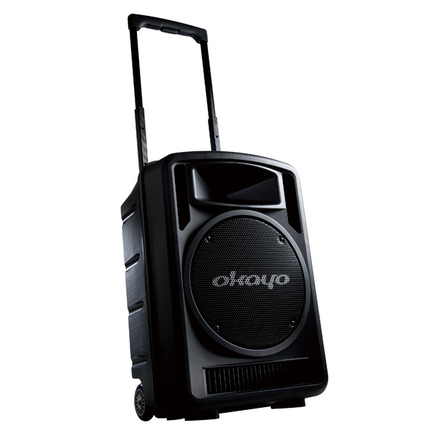

- Retractable handle and wheels allows users to move without difficulty
Overall Specifications |
|
Oscillation type |
PLL synthesized control OSC |
Carrier frequency range |
514-544 MHz (96 ch.) |
Adjustable frequency |
pre-programmed max. 96 switchable channels |
Display status |
LCD indicator displays channel or frequency |
Switching bandwidth |
max. 12 MHz |
Ambient temperature |
-10 °C ~ 50 °C |
Maximum deviation |
80 kHz, with level limiting |
Squelch |
tone key and noise lock dual-squelch |
Frequency response |
70 Hz - 17 kHz |
Operating range |
50 - 70 M (opening field) |
Wireless System |
|
Output power |
250 W (max.) |
Speaker |
10” woofer and 1” tweeter |
Receiver module |
DR-701A x 2, DR-500AF x 2 |
Audio input |
Combo / 6.3 φ -Mic1/2 in, 3.5 φ - Aux in,RCA-Line in, Blue-tooth Receiver |
Audio output |
3.5 φ - Aux out, RCA - Line out |
Power requirements |
100 ~240 VAC switching power supply |
Battery |
12V, 4.5 Ah x 2 (Lead-Acid) rechargeable batteries |
Battery indicator |
4 LEDs to indicate battery autonomy status |
Operating life |
4 ~ 6 hours |
Charging time |
6 ~ 8 hours |
Dimensions (D x W x H) |
310 x 360 x 800 mm |
Weight |
18 kg |
 EJ-7T+A |
 EJ-7XT+A |
 EJ-701TM+A |
 EJ-701TS+A |
 DR-701A |
 DR-700 |
 TX-701+ |
 UM-502P (USB/SD) |
 CD-800S+ (CD/USB/SD, Pitch Control) |
|
 BT-4500 |
 CB-800 |
 ST-750 |
