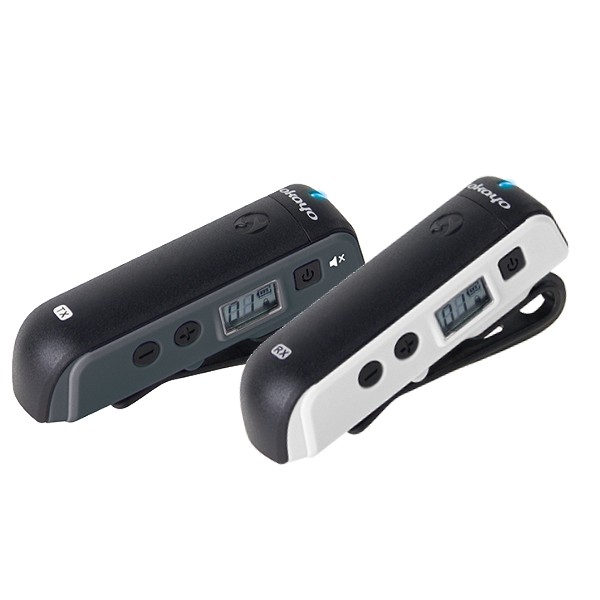

Tour Guide System
miniGuide is a trouble-free tour guide system that suitable for small conference and group. With light and handy exterior design, brings comfort tour experience without extra weight.
Configuration
 |
Details
- Features
- Specifications
- Accessories
- Download
- Digital wide spectrum in 490 ~ 938 MHz (region dependent)
- Auto Pairing function for quick start
- Adaptive Dynamic Noise Reduction function to eliminate the unpleasant sound (transmitter only)
- Mute button for short break (transmitter only)
- Channel lock to avoid accidentally operation
- Up to 50 channels (region dependent)
- 50 m wireless coverage
- Powered by 1 AAA battery for 8 hours run time
- Micro-USB charging
- Auto Power Off in 20 minutes of stand-by time
- Low battery indicator
- LCD screen with channel number and battery meter

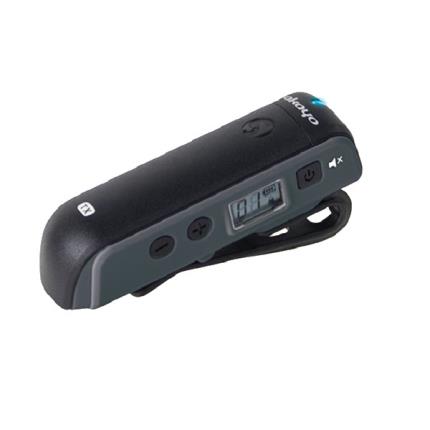

TRANSMITTER |
miniGuide |
Emission modulation |
GFSK |
Carrier frequency range |
490 ~ 938 MHz (region dependent) 863-865 MHz for Egypt only |
Channels |
7 ~ 50 channels (region dependent) |
Microphone type |
Electrical condenser |
RF output power |
7 ~ 10 dBm, 10mW for Egypt |
Operation range |
~ 50 meters (line-of-sight) |
Power requirements |
1 x AAA type 1.5V Alkaline battery or 1 x AAA type 1.2V Ni-MH rechargeable battery |
Charging time |
6 ~ 7 hours |
Battery life |
8 ~ 10 hours, typical |
Dimensions (W x H x D) |
23.1 x 80.7 x 35.9 mm |
Weight |
Appr. 27 g (w/o battery) |
Serial numbers |
TJ021713-TJ021714 for Egypt only |

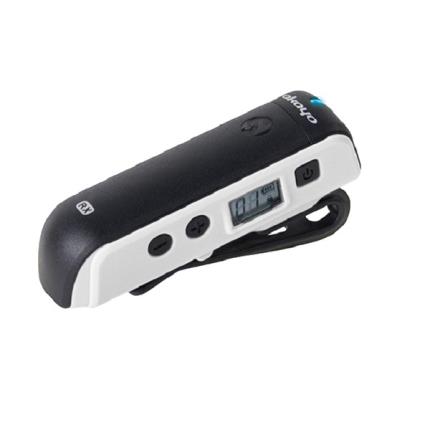

RECEIVER |
miniGuide |
Earphone |
3.5 mm |
Dimensions (W x H x D) |
23.1 x 80.7 x 35.9 mm |
Weight |
Appr. 27 g (w/o battery) |
Serial numbers |
RJ153067 - RJ153070 for Egypt only |
 EM-100 Single-sided Earphone |
 EM-101 Single-sided Earphone (soft shell) |
 EM-201 Over-the-Head Headphone |
 EM-205 Over-the-Head Headphone |
 EM-305 Single-sided Earphone (hard shell) |
 HM-35A Behind-the-head microphone |
 LM-72A Lapel Microphone |
 LM-72AM Lapel Microphone with mute button |
 PM-20A Gooseneck Plug-in Microphone |
 N-32 Lanyard |
 EC-205 Ear Cushion for EM-205 |
 DEC-205 Disposable Ear Cover for EM-201 and EM-205 |
 RUB-100 Replaceable rubber earbud for EM-100 |
 PD-1300 AAA 1.5V Alkalinebattery |
 PD-950 AAA 1.2V NiMH battery |
