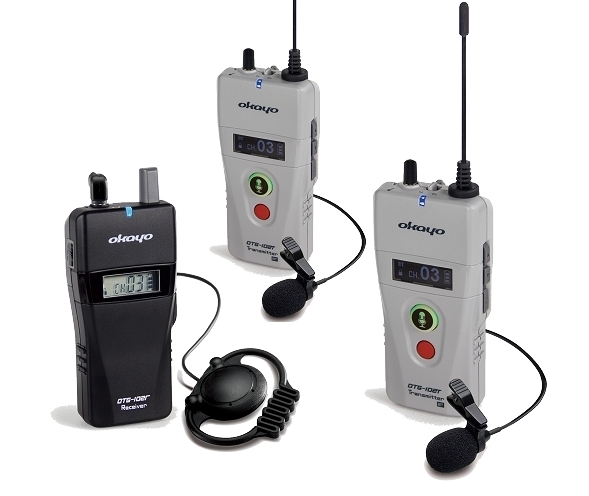

OTG-102
OmniTour Guiding System
Configuration
_400x200_灰框去1.png) |
Features
- Digital wide spectrum in 498 ~ 938 MHz, by country/region
- Noise-free technology improves audio tour experience
- 40+ hour run time
- Duo speaker in one group possible for various tour types
- Quick channel shift by group leader to optimize group arrangement
- 2/5/25/50-slot chargers featuring channel-sync at option to suit best tour type
Specifications
OTG-102
|
|
Emission modulation |
GFSK |
Carrier frequency |
498 ~ 938 MHz (region dependent) |
No. of channel |
Various upon countries |
Inbuilt microphone |
Yes |
Microphone input |
3.5 mm |
Earphone input |
3.5 mm |
RF power |
max. 13 dBm (region dependent) |
Operating range |
100 m (line of sight) |
Battery life |
15 hours, typical |
Battery |
2 x AA battery (Ni-MH or Alkaline) |
Dimensions (W x D x H) |
46.5 x 32 x 95 mm (with belt clip but without antenna) |
Weight |
105±5 g (with batteries) |
Transmitters or Chargers
 C2 2-slot Drop-In Charger |
 C5 5-slot Drop-In Charger |

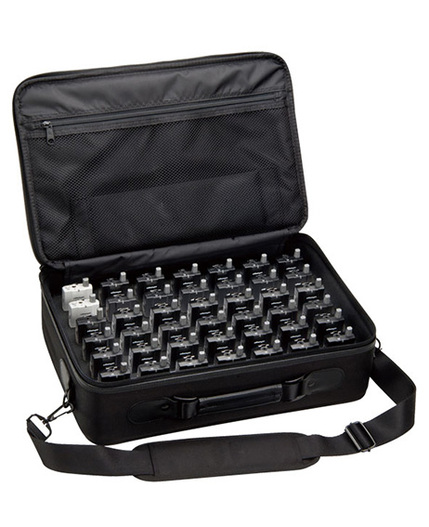

 CHG-5 5-slot Drop-In Charger with Carry Case |

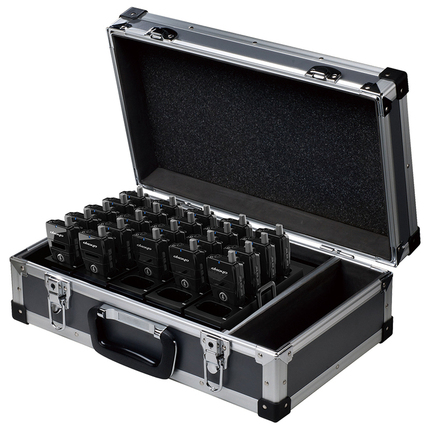

 CHG-25 25-slot Charger with Carry Case |
 C50 50-slot Charger |
Accessories
 EM-100 Single-sided Earphone |
 EM-101 Single-sided Earphone (soft shell) |
 EM-305 Single-sided Earphone (hard shell) |
 EM-201 Over-the-Head Headphone |
 EM-205 Over-the-Head Headphone |
 PM-20A Gooseneck Plug-in Mic |
 LM-72A Lapel Mic |
 LM-72AM Lapel Mic with Mute Button |
 HM-35A Behind-the-head Mic |
 HM-55A Behind-the-head Mic |
 HM-65A Behind-the-head Mic |
 N-32 Lanyard |
 NL-90 90cm Induction Loop |
 EC-205 Ear Cushion for EM-205 |
 DEC-205 Disposable Ear Cover for EM-201 and EM-205 |
 RUB-100 Replaceable rubber Earbud for EM-100 |
 PD-1600 1600mA Ni-MH Rechargeable Battery |
 PD-2900A 2900mA Alkaline Battery |
