DST-OTG

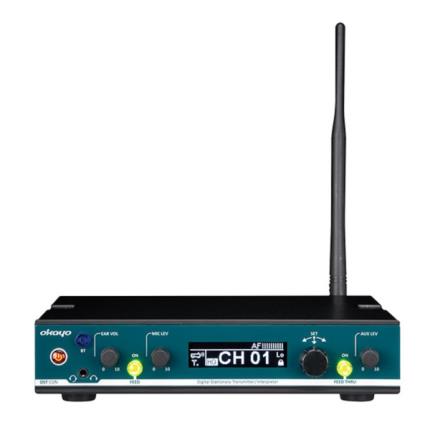

Digital Stationary Transmitter

DST-OTG is our digital stationary transmitter / interpreter for OTG-200 series. Various inputs available for different applications. Working with additional language router LR-10, DST-OTG will be a perfect tool for multi-language interpretation market as well.
Features
  • Clear display to show channels, RF power, AF and Aux-in level
  • In-ear monitoring available to hear mic-in and aux-in audio source
  • Wide operation range (> 100 meters) possible.
  • Programmable proprietary software OK-OTG-SW available for channel compilation.
Specifications

OVERALL SYSTEM
Carrier frequency range
748 ~ 795 MHz (region dependent)
Antenna
TNC connector
Headphone output
0.5 W @ 32 ohm
RF output power
  • Hi: 20 dBm
  • Low: 10 dBm (region dependent)
  • Inputs
  • Mic in: 3.5 mm & 6.3 mm
  • Aux in: RCA
  • Loop in: 6.3 mm
  • Outputs
  • Ear mic out: 3.5 mm
  • Aux out: RCA
  • Loop out: 6.3 mm
  • Operation range
    > 100 m (line of sight @ Hi power)
    Power requirements
    100 ~ 240 V AC / 12 V DC, 1.0 A switching power
    Dimensions (W x D x H)
    215 x 210 x 51 mm
    Weight
    1.25 kg

    Software


    OK-CON-SW
    Proprietary software


    Language Router


    LR-10
    10-ch language router

    Accessories

    BL-770
    Rack mount kit

    BL-771
    Rack mount kit

    BF-770
    Combiner for two receivers
