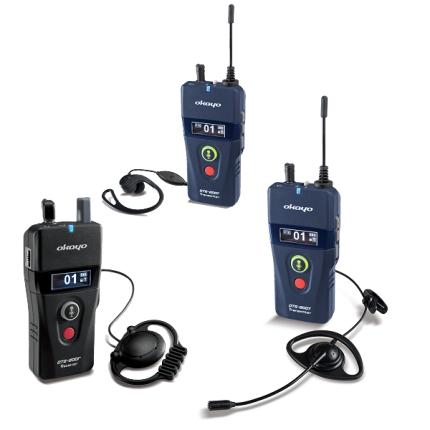

OTG-200
OmniTour Guiding System
Okayo's innovative two-way OmniTour Guding System OTG-200 is now officially released! OTG-200 system suits for all occasions where require two-way communication, such as training, Q&A lectures, and group/factory tours. Participants can simply press a button to respond/ask questions without learning. Further, specific features, including roll-call and alarm for group gathering, are available for group leaders to manage the trip easily and quickly. Specifically, Okayo’s proprietary software OK-OTG-SW is available for channel management which is perfectly practical for professional conferencing/lecturing.
Configuration
 |
 |
 |
_400x200_灰框去.png) |
 |
Features
- Digital wide spectrum in 520 ~ 938 MHz, by country/region
- "Talk back" allows group members to raise a question
- "Roll call" helps the guide to manage group status
- "Gathering" brings group members to a meeting point
- "Alarm" reminds group members of weak connection
- High-contrast OLED screen for easy viewing, even users with low vision
- 5/25/50-slot chargers at option to suit best tour type
- "Channel sync" facilitates device distribution and management
- Programmable display for perfect fit on specific application
- 2 x AA battery (NiMH, Alkaline) for 18+ hour run time
- 3 modes – Guiding, Teaching and Discussing for wide range application
Specifications
TRANSMITTERS |

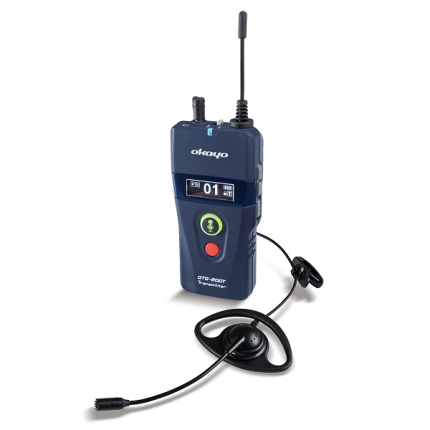

OTG-200T |
Emission modulation |
GFSK |
Carrier frequency |
520 ~ 938 MHz (region dependent) |
No. of channel |
Various upon countries |
Inbuilt microphone |
Yes |
RF power |
max. 13 dBm (region dependent) |
Operating range |
70 m (line of sight) |
Battery life |
16 ~ 18 hours, typical |
Battery |
2 x AA battery (Ni-MH or Alkaline)/td>
|
Dimensions (W x D x H) |
46.5 x 32 x 95 mm (with belt clip but without antenna) |
Weight |
105±5 g (with batteries) |
RECEIVER |

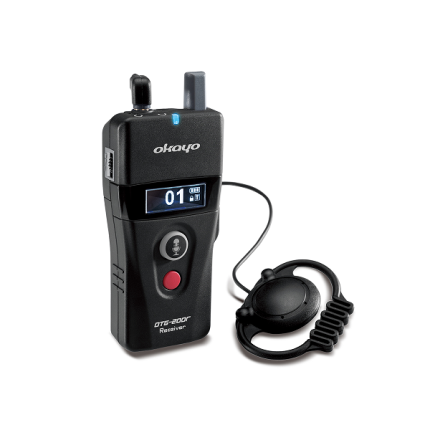

OTG-200R |
RF power |
max. 10 dBm |
Headphone jack |
3.5 mm |
Inbuilt microphone |
Yes |
Transmitters or Chargers
 DST-OTG Stationary Transmitter |
|||
 C5 5-slot Charger |
 CHG-5 5-slot Charger with Carry Case |
 CHG-25 25-slot Charger with Carry Case |
 C50 50-slot Charger |
Accessories
 EM-100 Single-sided Earphone |
 EM-101 Single-sided Earphone (soft shell) |
 EM-305 Single-sided Earphone (hard shell) |
 EM-201 Over-the-Head Headphone |
 EM-205 Over-the-Head Headphone |
 EMC-100 Single-sided Ear Mic |
 EMC-300 Single-sided Ear Mic |
 HEM-20 Headphone Mic |
 HEM-30 Headphone Mic |
 EMC-206 Headphone Mic (cable detachable) |
 N-32 Lanyard |
 NL-90 90cm Induction Loop |
 EC-205 Ear Cushion for EM-205 |
 DEC-205 Disposable Ear Cover for EM-201 and EM-205 |
 RUB-100 Replaceable rubber earbud for EM-100 |
 PD-1600 1600mA Ni-MH Rechargeable Battery |
 PD-2900 2900mA Alkaline Battery |
