AR PA 7
Wireless Audio Router System

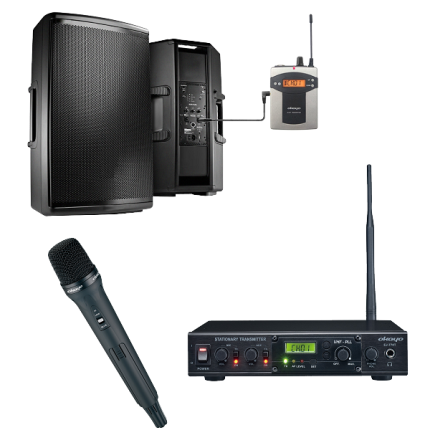

Easy onsite setup without cabling and complicated installation. Importantly there is no compromise for audio quality at all! First of all, simply connect the receiver with your active speaker via a 3.5 mm to 3.5 mm cable (aux). Then, connect the stationary transmitter with your mixer through compatible cable. Finally, tune same channel on both devices. That’s it! Simple and quick!
* AR PA 7H, Handheld set, incl receiver x 1, handheld microphone x 1
* AR PA 7T, Lavalier set, incl receiver x 1, bodypack transmitter x 1, lavalier mic x 1
* AR PA 770, Long-range set, incl receiver x 1, stationary transmitter x 1
* AR PA 7H, Handheld set, incl receiver x 1, handheld microphone x 1
* AR PA 7T, Lavalier set, incl receiver x 1, bodypack transmitter x 1, lavalier mic x 1
* AR PA 770, Long-range set, incl receiver x 1, stationary transmitter x 1
Features
- No cabling installation eases setup
- High level of audio quality without compromise
- 100 ~ 300+ meter operation range enhances performance
- Various channel quantity (up to 96) available upon countries
- Simply adding more receivers to work with to expand the system
Specifications

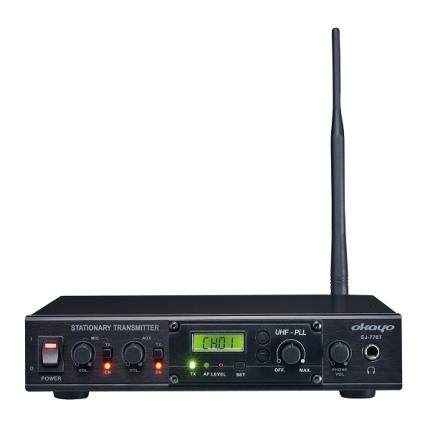

Stationary Transmitter |
EJ-770T |
Oscillation type |
PLL Synthesized Control OSC |
Carrier frequency range |
514 ~ 865 MHz (region dependent) |
Channels |
16 ~ 96 channels (region dependent) |
RF output power |
Hi: 16 dBm Low: 10 dBm |
Antenna |
TNC connector |
Inputs |
Mic in: 6.3Ø & XLR Aux in: RCA |
Headphone output |
3.5 mm |
Monitor Output |
450 mW @ 32Ω |
Operation range |
> 100 m (open field @ low power) |
Power requirements |
100 ~ 240 V AC / 12 V DC; 1 A switching adapter |
Dimensions (D x W x H) |
214 x 215 x 44 mm |
Weight (with batteries) |
1.25 kg |

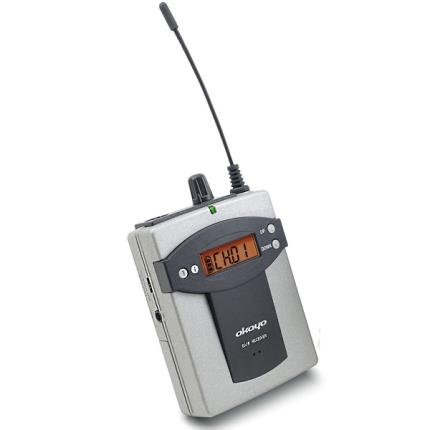

Receiver |
EJ-7R |
Carrier frequency range |
514 ~ 865 MHz (region dependent) |
Power requirements |
2 x AA (1.2 V, NiMH) or 2 x AA (1.5 V, Alkaline) |
Frequency response |
80 Hz ~ 13 kHz |
Dynamic range |
110 dB |
Dimensions (D x W x H) |
34 x 64 x 97.3 mm without antenna |
Weight |
170 g with batteries |
Compatible Receiver
EJ-7R Bodypack Receiver |
Compatible Transmitter

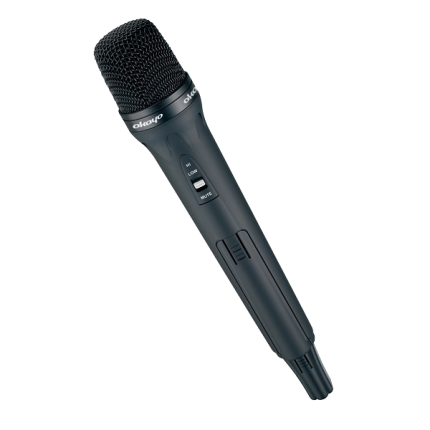

EJ-701TS+ Handheld Microphone |
EJ-770T Stationary Transmitter |
