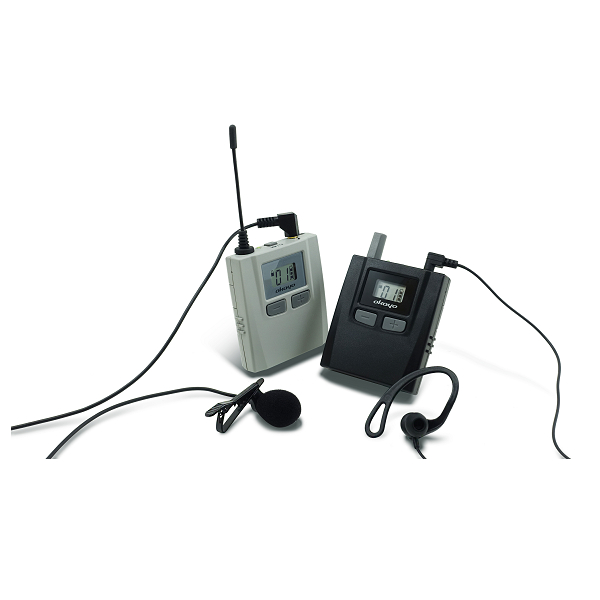

WCS-350
Wireless Coach Communication System
During sports training like riding or rowing, the coach could have a better and easy way to give instructions to the trainees. What the coach needs is wireless coach communication system but not powerful voice.
WCS-350 wireless coach communication is just the best solution! With reception distance of more than 100 meters, the training would be more efficient without breaking off.
WCS-350 wireless coach communication is just the best solution! With reception distance of more than 100 meters, the training would be more efficient without breaking off.
Specifications
- Features
- Specifications
- Chargers
- Accessories
- Download
- 70g lightweight eases users' onsite application
- Rugged and durable design is perfect for coaching market
- True sound quality makes communication between coach and trainee be boundless
- Operation range is more than 70 meters when in clear line of sight
OVERALL SYSTEM |
|
Carrier frequency range |
514MHz ~ 865MHz (region dependent) |
Operating temperature |
-10℃ ~ 50℃ |
Power requirements |
2 x AA (1.2V / 2500mAH, Ni-MH) or 2 x AA (1.5V Alkaline) |
Frequency response |
150 Hz ~ 10 kHz |
T.H.D. |
< 1 % |
Operating range |
> 100 M (line of sight) |
Dimensions (D x W x H) |
20 x 60 x 90 mm |
Weight |
70 g |

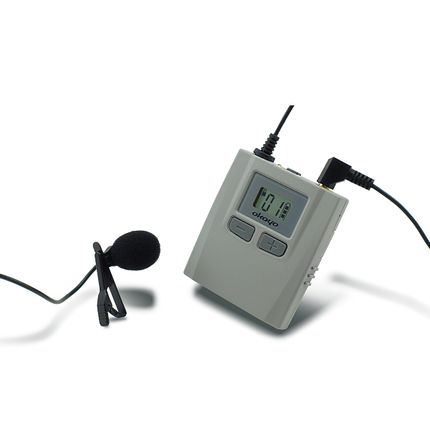

TRANSMITTER |
WCS-350T |
RF output power |
10mW, subject to local rules |
Microphone connector |
3.5 mm |
Modulation level |
60 kHz |
Battery life |
12 hours typical |

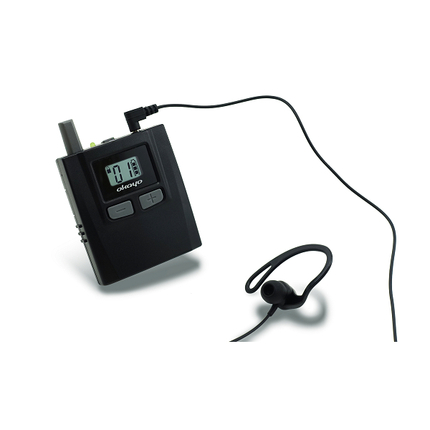

RECEIVER |
WCS-350R |
Double intermidiate |
OSC / FM |
Earphone connector |
3.5 mm |
Audio level |
250 mV |
Battery life |
18 hours typical |
 EM-100 Single-sided Earphone |
 EM-101 Single-sided Earphone (soft shell) |
 EM-201 Over-the-Head Headphone |
 EM-205 Over-the-Head Headphone |
 EM-305 Single-sided Earphone (hard shell) |
 CM-100A Collar Microphone |
 HM-35A Behind-the-head microphone |
 HM-55A Behind-the-head microphone |
 HM-65A Behind-the-head microphone |
 LM-60A Plug-In Microphone |
 LM-72A Lapel Microphone |
 LM-72AM Lapel Microphone with Mute Button |
 LM-90A Lapel Microphone |
 N-32 Lanyard |
 NL-90 90cm Induction Loop |
 EC-205 Ear Cushion for EM-205 |
 DEC-205 Disposable Ear Cover for EM-201 and EM-205 |
 RUB-100 Replaceable rubber earbud for EM-100 |
 PD-1600 1600mA Ni-MH Rechargeable Battery |
 PD-2900 1600mA Ni-MH Rechargeable Battery |

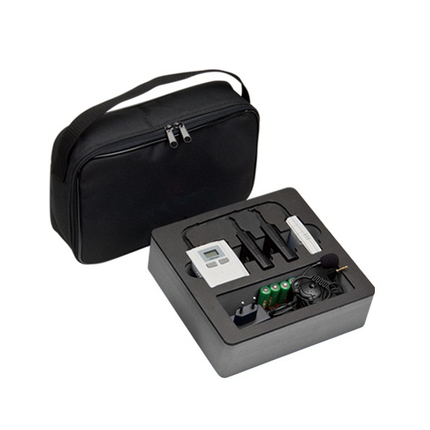

 HB-350 4 unit Hand Bag |
 HC-10 10 unit Heavy-Duty and Waterproof Carry Case |
 CCW-28 28 unit Heavy-Duty and Waterproof Carry Case |
 TB-350 30 unit Travel Bag |
