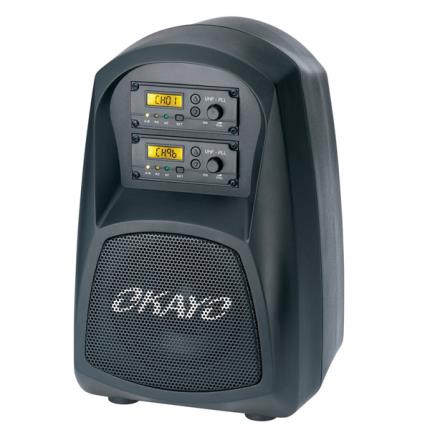

GPA-500
UHF 60W Wireless Sound System
Being the pioneer of fashionable design and versatile performance, OKAYO Portable Sound System, GPA-500 is perfect for building your own personal sound field. It can be hand-carried, mounted on a stand or on the wall, ideal for the application in schools, worship places, seminars, tours, small concerts, auctions, or any event indoors / outdoors when good quality of announcement or a public speech is required.
Features
- 60W power output (max)
- High-fidelity of 5” full-range speaker to achieve excellent sound quality
- Plug-and-play dual receiver modules with up to 96 selectable channels
- Built-in rechargeable 12 V/2.9 Ah Lead-Acid battery providing up to 6 hours (2 microphones, in speech) continuous use when fully charged
- With Mic in, Aux out/ in, able to connect with other external audio source. Such as CD player, iPod, instruments and etc
- External audio sources can be mixed simultaneously to the input
- Installed UM-501 MP3 player modules with USB / SD card reader and remote control
- Bluetooth receiver for option
- Supports 2 wireless microphones and 1 wired microphone
Specifications
Overall Specifications
|
|
Oscillation type |
PLL synthesized control OSC |
| Carrier frequency range |
514-865 MHz (16 / 96 ch., country dependent) |
Adjustable frequency |
pre-programmed max. 96 switchable channels |
Display status |
LCD indicator displays channel or frequency |
Switching bandwidth |
max. 12 MHz |
| Ambient temperature |
-10 °C ~ 50 °C |
Maximum deviation |
80 kHz, with level limiting |
Squelch |
tone key and noise lock dual-squelch |
Frequency response |
70 Hz - 17 kHz |
| Operating range |
50 - 70 M (opening field) |
Wireless System
|
|
Output power |
60 W (max.) / 40 W (RMS) |
| Speaker |
5" |
Receiver module |
DR-701A x 2, DR-700 x 2 |
Audio input |
6.3 φ -Mic in, 3.5φ - Aux in (stereo) |
Audio output |
3.5 φ - Aux out (stereo) |
| Power requirements |
100 ~240 VAC,20 VDC, 3.25 A switching power supply |
Battery |
12V, 4.5 Ah x 2 (Lead-Acid) rechargeable batteries |
Battery indicator |
4 LEDs to indicate battery autonomy status |
Battery run time |
4 ~ 5 hours (subject to output volume) |
| Charging time |
6 ~ 8 hours |
Dimensions (D x W x H) |
260 x 210 x 290 mm |
| Weight |
4.4 kg (with battery) |
Transmitters
Accessories
 UM-501 (USB/SD) |
 UM-502P (USB/SD) |
 BT-2900 |
 CB-501 |
 ST-750 |
 WB-500 |
 SP-500 |
