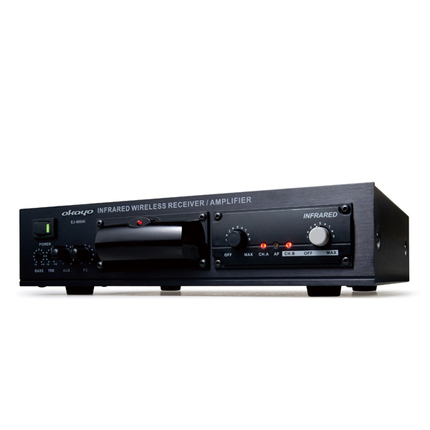

EJ-900AI

Infared Soundfield System

Description

Clear sound projection is essential to pupils’ learning. Students will perform well when they can hear every word clearly pronounced by teachers. A good Soundfield System can do more than that by delivering clear voice projection, offering better verbal recognition, and improving learning behavior – this is what EJ-900AI will provide. An additional benefit that IR technology will give is teachers can get rid of the setting of microphone from room to room.

Add to compare

View More Details

Features

Worldwide license free band
Max 45W output power
3-band EQ for AUX output
Inputs and controls for PC and AUX
4 extension for speakers
Voice override available in case of emergency

Specifications

Specifications	EJ-900AI
Output power	45W (max.) / 30 Watt (RMS) @ 4Ω
S/N ratio	>80 dB
Carrier frequency	2.3 - 2.8 MHz
Frequency response	20 Hz - 20 kHz.
Audio input	AUX, PC (RCA)
Audio output	AUX (RCA), with 3-band EQ (HF,MF,LF)
Receiver module	IR-502 × 1
Controls	Bass, Treble, Aux in, PC in, Aux out (HF, MF, LF)
Speaker connections	4 @ 4~8 Ω
Speaker balance controls	L & R out
Announcement	voice override
Announcement input switch	25 / 70 / 100 V @ 8 Ω
Power requirements	100 ~ 240 VAC / 18 VDC, 2.7 A switching power adaptor
Charge output	5 VDC, 1 A
Dimensions (D x W x H)	221.6 x 266 x 60 (mm)
Weight	1.9 kg
