WT-500
International Travel Tour System
Description
Product Line
Home > Product Line > Guiding System > Tour Guide System
Tour Guide System

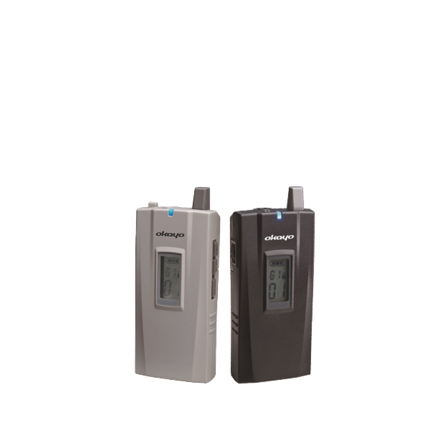

WT-500 series can be use up to 15 hours with only one battery. This feature helps the tour to reduce the extra battery weight and cost. Weight only 70g which brings comfort for the users without adding extra weight to their vocation. The channel auto locking function prevents channel changing on mistake and the backlit LCD help users to read the channel number better during dim environment.
Specification
- Features
- Specifications
- Transmitters
- Chargers
- Accessories
- Download
- Frequency band on 584 ~ 870 MHz (region dependent)
- 40 or 80 channels (depends on frequency)
- LCD display for battery, channel number reading
- Channel lock and power saving functions
- Fin antenna secures 100+ meter wireless coverage
- Powered by one AA battery (Alkaline or Ni-MH), 15 hours battery life
- Rechargeable design
OVERALL SYSTEM |
|
Oscillation type |
PLL Synthesized Control OSC |
Carrier frequency range |
584 MHz ~ 870 MHz (region dependent) |
Operating temperature |
-10℃ ~ 50℃ |
Power requirements |
1 x AA (1.2V/2500 mAh, Ni-MH) or 1 x AA (1.5V Alkaline) |
Channels |
40 or 80 (region dependent) |
Frequency response |
150 Hz ~ 4 kHz |
Dynamic range |
60 dB |
T.H.D. |
<3% |
Operating range |
100 M (line of sight) |
Earphone connector |
24 x 40 x 97 mm |
Weight |
70 g (with battery) |
TRANSMITTER |
WT-500T |
RF output power |
10 mW, subject to local rules |
Spurious emission |
250 nW |
Mic./Aux input |
3.5 mm |
Battery run time (Ni-MH/Alkaline) |
9 hours/10 hours typical |
Modulation level |
3 kHz |
RECEIVER |
WT-500R |
Receiving mode |
PLL single-channel |
RF spurious rejection |
60 dB |
IMD rejection |
50 dB |
Double intermediate |
584 ~ 664 MHz @ 45MHz/455kHz ; 794 ~ 870 MHz @ 21.4MHz/455kHz |
Audio level |
300 mV |
Earphone connector |
3.5 mm |
Battery run time (Ni-MH/Alkaline) |
12 hours/ 15 hours typical |
 EM-100 Single-sided Earphone |
 EM-101 Single-sided Earphone (soft shell) |
 EM-305 Single-sided Earphone (hard shell) |
 EM-201 Over-the-Head Headphone |
 EM-205 Over-the-Head Headphone |
 PM-20A Plug-In Microphone |
 LM-72A Lapel Microphone |
 LM-72AM Lapel Microphone with Mute Button |
 LM-90A Lapel Microphone |
 HM-35A Behind-the-head microphone |
 HM-55A Behind-the-head microphone |
 HM-65A Behind-the-head microphone |
 N-32 Lanyard |
 NL-90 90cm Induction Loop |
 EMP-205 Ear Cushion for EM-205 |
 DEC-205 Disposable Ear Cover for EM-201 and EM-205 |
 RUB-100 Replaceable rubber earbud for EM-100 |
 HB-500 4 unit Hand Bag |
 HC-10 10 unit Heavy-Duty and Waterproof Carry Case |
 CCW-30 30 unit Heavy-Duty and Waterproof Carry Case |
 AC-358-500 Combo Carry Case (w/ removable foam) |
AC-500 32 unit Carry Case |
 TB-500 42 unit Travel Bag |
 PD-1600 1600mA Ni-MH Rechargeable Battery |
 PD-2900 2900mA Alkaline Battery |
