Overall Specifications
|
|
Oscillation type |
4GFSK |
| Carrier frequency range |
794-928 MHz (country dependent) |
Adjustable frequency |
pre-programmed max. 50 switchable channels |
Display status |
LCD indicator displays channel or frequency |
Switching bandwidth |
max. 12 MHz |
| Ambient temperature |
-10 °C ~ 50 °C |
Maximum deviation |
80 kHz, with level limiting |
Squelch |
tone key and noise lock dual-squelch |
Frequency response |
70 Hz - 16 kHz |
| Operating range |
50 - 70 M (opening field) |
Wireless System
|
|
Output power |
60 W (max.) / 40 W (RMS) |
| Speaker |
5" Neodymium |
Receiver module |
DLR-9, up to 2 |
Audio input |
6.3 φ -Mic in, 3.5φ - Aux in (stereo) |
Audio output |
3.5 φ - Aux out (stereo) |
| Power requirements |
100 ~240 VAC,20 VDC, 3.25 A switching power supply |
Battery |
12 V, 4.5 Ah x 1 (Lead-Acid, rechargeable battery) |
Battery indicator |
4 LEDs to indicate battery autonomy status |
Battery run time |
4 ~ 8 hours (subject to battery type and output volume) |
| Charging time |
6 ~ 12 hours |
Dimensions (D x W x H) |
201 x 170 x 341 mm |
| Weight |
4.3 kg(with Lead-Acid) |
Home / Product Line
Digital UHF 60W Wireless Personal Sound System Supplier
Over the years, OKAYO ELECTRONICS CO., LTD. achieved continuous growth by closely observing the market in order to produce customer-oriented products. Our Digital UHF 60W Sound System is made to the same rigorous quality standards that our commercial customers demand. With the help of Digital UHF 60W Sound System, you can easily manage and track your business. Our aim is to create a strong base for the consumers and suppliers in Taiwan and abroad, through which, a perfect chain of demand and supply can be maintained. Our company is a professional manufacturer of Digital UHF 60W Sound System, providing DL-550, Digital UHF 60W Sound System, wireless mic and speaker system with top quality.

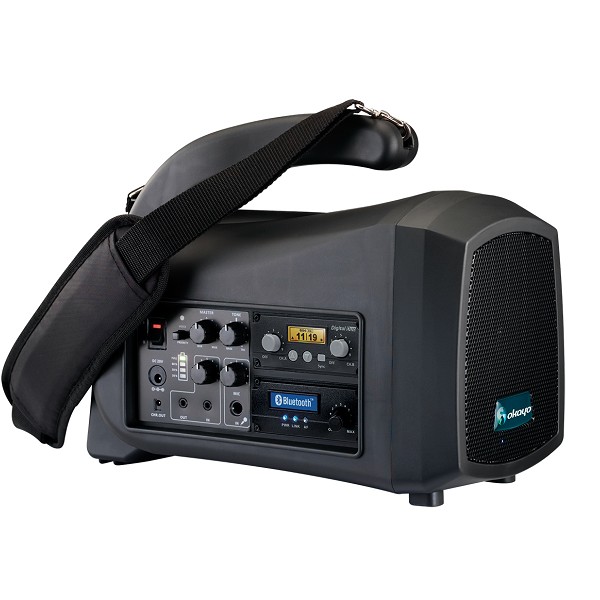

DL-550
Digital UHF 60W Sound System
It is not just a simple shoulder carry amplifier speaker. But it is compact and 60W powerful battery powered sound reinforcement for any environment. Ideal for meeting room, club, party, fitness or classroom and middle group of crowd.
Features :
- 60W power output (max)
- Two-way speaker – 5” Neodymium woofer and 1” tweeter – deliver great sound projection
- Supports up to 4 wireless microphone to operate concurrently
- Sync to set microphone at same channel as receiver
- USB/MP3 audio player and Bluetooth receiver for option
- Integrated Bluetooth function for audio streaming from smartphone and tablet
- 4-segment battery meter for charging and power status reading
- Voice priority allows a reduced music volume when a microphone is used
- Two power models – AC or Battery powered
- Two battery options – Lead-Acid and Lithium, choice at budget
- Runs 4-8 hours on a charge (built-in battery charger)
Specifications :
Transmitters & Receivers :
 DL-9H Handheld Microphone |
 DL-9T Bodypack Transmitter |
 DLR-9 Duo-channel Receiver Module |
Accessories :
 UM-502 (USB/SD) Audio Player |
 CB-550 Dust Cover |
 BT-2900 2900mA Lead-Acid Battery |
 ST-35 Tripod |
Our products have always been known for quality, reliability and solid performance, making OKAYO ELECTRONICS CO., LTD. becomes the most specified brand in the Digital UHF 60W Sound System business. We can manufacture Digital UHF 60W Sound System that meets specific technical requirements. If you are looking for DL-550, Digital UHF 60W Sound System, wireless mic and speaker system, you are in the right place. At OKAYO ELECTRONICS CO., LTD., you will find every kind of Digital UHF 60W Sound System that you can think of, with something for all kind of business.
