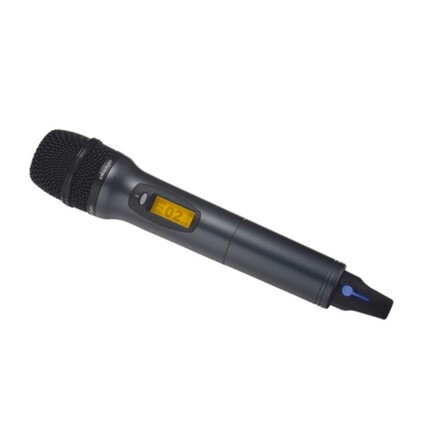

DL-9H

Digital UHF Handheld Microphone

Specification
  • Features
  • Specification
  • Accessories
  • Dynamic capsule.
  • Big Backlit LCD for easy reading.
  • Auto Channel pairing by receiver.
  • Sleek metalic housing with comfortable use.
  • Micro-USB charging port.
  • 2 AA battery powered.
Oscillation type
4 GFSK
Carrier frequency range
794 - 928 MHz (country dependent)
Number of channels
7-50 (country dependent)
Antenna
Built-in
RF output
10-20 mW
Frequency response
70 Hz - 12 kHz
Sampling rate
Q @ 24 kHz; HQ @ 48 kHz
Latency
4 ms
Battery
2 x AA 1.2v (Ni-MH), 2 AA 1.5V (Alkaline)
Battery life
8 (Ni-MH)/ 12 (Alkaline) hours typical
Dimensions (D x H)
48 x 258 (mm)
Weight
270 g (w/o batteries)

GP-1600
1600mA Ni-MH Rechargeable
Battery

GP-2100
2100 mA Ni-MH Rechargeable
Battery

PD-2900
1.5V, 2900mA, Alkaline
Battery
