CON-9H

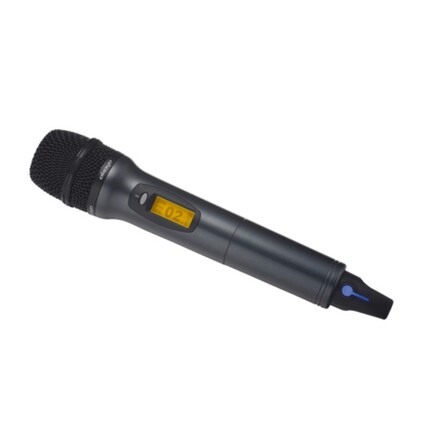

Digital UHF Handheld Microphone

Specification
  • Features
  • Specification
  • Accessories
  • Dynamic capsule.
  • Big Backlit LCD for easy reading.
  • Auto Channel pairing by receiver.
  • Sleek metalic housing with comfortable use.
  • Micro-USB charging port.
  • 2 AA battery powered.
Oscillation type
4 GFSK
Carrier frequency range
794 - 928 MHz (country dependent)
Number of channels
7-50 (country dependent)
Antenna
Built-in
RF output
High: 2 ~ 8 dBm, Low: -12~ -2 dBm
Frequency response
70 Hz - 12 kHz
Sampling rate
Q @ 24 kHz; HQ @ 48 kHz
Latency
< 4 ms
Battery
2 x AA (1.2 V 1600 mAh, NiMH), 2x AA (1.5 V Alkaline)
Battery life
13 (NiMH)/ 15 (Alkaline) hours typical
Dimensions (D x W x H)
87 x 64 x 23 (mm) (w/o antenna)
Weight
115 g (w/o batteries)

GP-1600
Ni-MH
Rechargeable
Battery
