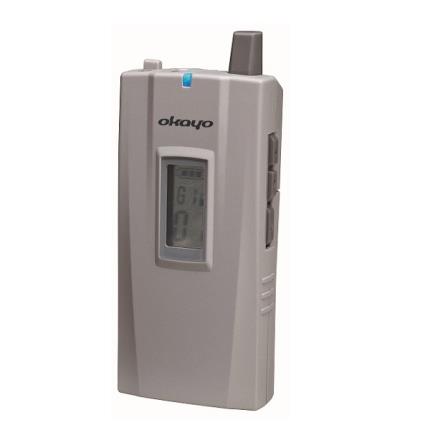

WT-500T

UHF Bodypack Transmitter

Specification



  • Features
  • Specifications
  • Chargers
  • Accessories
  • Frequency band on 640 ~ 870 MHz (region dependent)
  • 40 or 80 channels (depends on frequency)
  • LCD display for battery, channel number reading
  • Channel lock and power saving functions
  • Fin antenna secures 100+ meter wireless coverage
  • Powered by one AA battery (Alkaline or Ni-MH), 15 hours battery life
  • Rechargeable design
OVERALL SYSTEM
Oscillation type
PLL Synthesized Control OSC
Carrier frequency range
584 MHz ~ 870 MHz (region dependent)
Operating temperature
-10℃ ~ 50℃
Power requirements
1 x AA (1.2V/2500 mAh, Ni-MH) or 1 x AA (1.5V Alkaline)
Channels
40 or 80 (region dependent)
Frequency response
150 Hz ~ 4 kHz
Dynamic range
60 dB
T.H.D.
<3%
Operating range
100 M (line of sight)
Earphone connector
24 x 40 x 97 mm
Weight
70 g (with battery)
RF output power
10 mW, subject to local rules
Spurious emission
250 nW
Mic./Aux input
3.5 mm
Battery run time (Ni-MH/Alkaline)
9 hours/10 hours typical
Modulation level
3 kHz

CM-100A
Collar Microphone

HM-35A
Behind-the-head microphone

HM-55A
Behind-the-head microphone

HM-65A
Behind-the-head microphone

LM-60A
Plug-In Microphone

LM-72A
Lapel Microphone

LM-72AM
Lapel Microphone with Mute Button

LM-90A
Lapel Microphone

AC-358-500
Combo Carry Case
(w/ removable foam)

AC-500
32 unit Carry Case

HB-500
4 unit Hand Bag

TB-500
42 unit Travel Bag

N-32
Lanyard

GP-1600
1600mA Ni-MH Rechargeable
Battery
