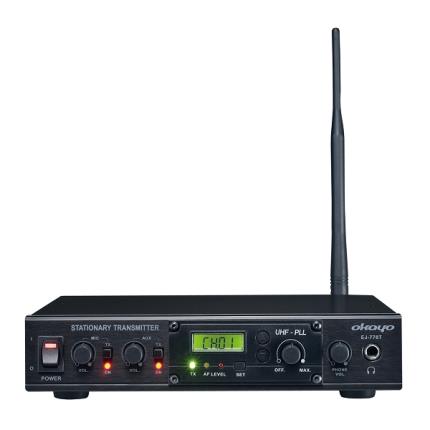

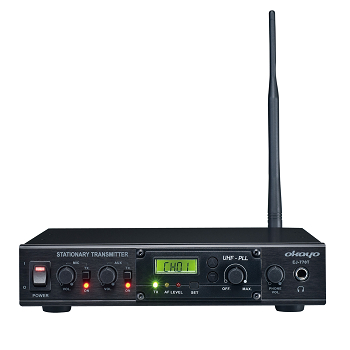

EJ-770T

Stationary Transmitter

Description
Single channel transmitter EJ-770T gives a trouble free solution to the event where only one language is needed to translate and to broadcast wirelessly. The Aux In for external audio source is also helpful to enrich the application, which will be mixed together with RF signal and send out to audience. Individual button and control for Mic and Aux facilitate the operation which the interpreter can handle easily.
* EJ-770T, is compatible with EJ-5 and EJ-7 systems
* EJ-770T-16CH, is compatible with WT-480 and WT-808 systems
* EJ-770T-300, is compatible with WT-300 (794-865 MHz) and WT-500 (794-865 MHz) systems
* EJ-770T-500, is compatible with WT-500 (584-608 MHz) system
Specification
  • Features
  • Specifications
  • Model List
  • Accessories
  • Download
  • The stationary transmitting solution for all our UHF guides series.
  • EJ-770T supports in-ear monitoring with optional RCA audio inputs and XLR microphone input.
  • You may choose upon which model of receivers you would like to work with.
OVERALL SYSTEM
Oscillation type
PLL Synthesized Control OSC
Carrier frequency range
584 MHz ~ 865 MHz (region dependent)
Channels
16-96 channels (region dependent)
RF output
Hi: 16dBm/Low: 10dBm (country dependent)
Antenna
TNC connector
Monitor output
450mW @32Ω
Aux inputs
Mic in-6.3ø and XLR; Aux in-RCA
Earphone jack
3.5 mm, stereo
Operating range
100 M (line of sight)
EJ-770T
Power requirements

100~240V AC / 12V DC, 1 A; switching power supply

Dimensions (D x W x H)
214 x 215 x 44 mm
Weight
1.25 kg
Model Name
EJ-770T
EJ-770T-300
EJ-770T-500
EJ-770T-16CH
WT-350
WT-300
v
WT-500
v
v
WT-808
v
DigiBee
WT-600
EJ-5
v
EJ-7
v

*EJ-770T-500 is available only for 584-608MHz.

BL-770
Rack mount kit

BL-771
Rack mount kit

BF-770
Combiner for two receivers
