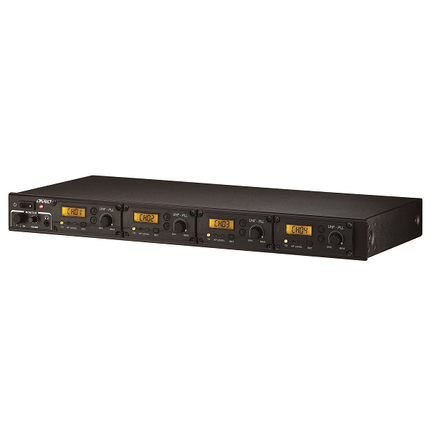

EJ-774T

EJ-774T

4-way Transmission System

Description
This 4-way Transmission System EJ-774T offers a super easy installation to conduct simultaneous language distribution up to 4 at a time. Simply get external audio sources connected, turn respective transmitters on, set selected channels then it is ready to use. The rotary switch is of great help to monitor each transmission by the operator.
* EJ-774T, is compatible with EJ-5 and EJ-7 systems
* EJ-774T-16CH, is compatible with WT-480 and WT-808 systems
* EJ-774T-300, is compatible with WT-300 (794-865MHz) and WT-500 (794-865MHz) systems
* EJ-774T-500, is compatible with WT-500 (584-608MHz) system
Specification
  • Features
  • Specification
  • Model List
  • Accessories
  • Download
  • Frequency band on 584 to 865 MHz (region dependent)
  • 16-96 channels, country and frequency band dependent

OVERALL SYSTEM
Oscillation type
PLL Synthesized Control OSC
Carrier frequency range
584 MHz ~ 865 MHz (region dependent)
Channels
16 or 96 channels (region dependent)
RF output
Hi: 16dBm/Low: 10dBm
Antenna
TNC connector
Monitor output
450mW @32Ω
Aux inputs
Mic in-6.3ø and XLR; Aux in-RCA
Earphone jack
3.5 mm, stereo
Operating range
100 M (line of sight)
EJ-774T
Power requirements

100~240V AC / 12V DC, 2A; switching power supply

Dimensions (D x W x H)
214 x 430 x 44 mm
Weight
2.4 kg
Model Name
EJ-774T
EJ-774T-300
EJ-774T-500
EJ-774T-16CH
WT-350
WT-300
v
WT-500
v
v
WT-808
v
DigiBee
WT-600
EJ-5
v
EJ-7
v

*EJ-774T-500 is available only for 584-608MHz.

BL-771
Rack mount kit
